CP85050 Luft-Hydraulisk Jekk
Benefits
High Lifting Capacity
High Durability
Fast and easy operation controlled from the handle
Low Profile
Convenient
Easy maneuvering and to transport
Safety
Features
Maximum height: 18 1/2 in / 472 mm
Air powered piston
Includes 2 extensions for higher lifting - Stored on handle for transport
Piston and pump
Anti dust seals

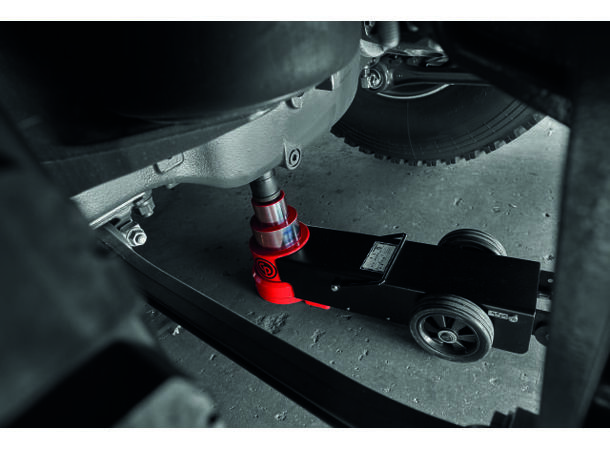

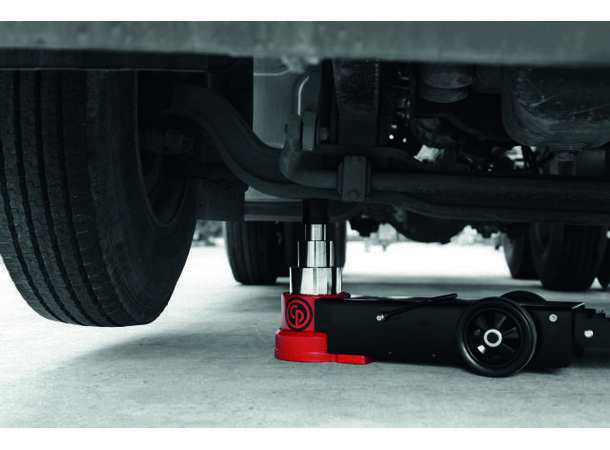

Ideal for easily accessing lifting points on low chassis trucks and buses
Convenient joystick controls
Cylinder mounted carrying handle
4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to
controls when fully positioned under vehicle
Handle bar locks in 3 positions: 45°, 90° & 180°
Large & soft rubber wheels
| Model | CP85050 |
| Part number | 8941085050 |
| Description | CP85050 AIR HYDRAULIC JACK - 50 tons |
| Box dimensions | 850X300X260 1390X280X110 mm |
| Capacity | 50/25/15 ton(s) |
| Dimension A | 160 mm |
| Dimension B | 200 mm |
| Dimension C | 282 mm |
| Dimension D | 470 mm |
| Dimension D+E | 555 mm |
| Dimension E | 85 mm |
| Dimension F | 222/283/352 mm |
| Dimension G | 1430 mm |
| Dimension P | 71 mm |
| Net weight | 60 kg |
| UPC Code | 015451767952 |
| Wheel type | Rubber |
